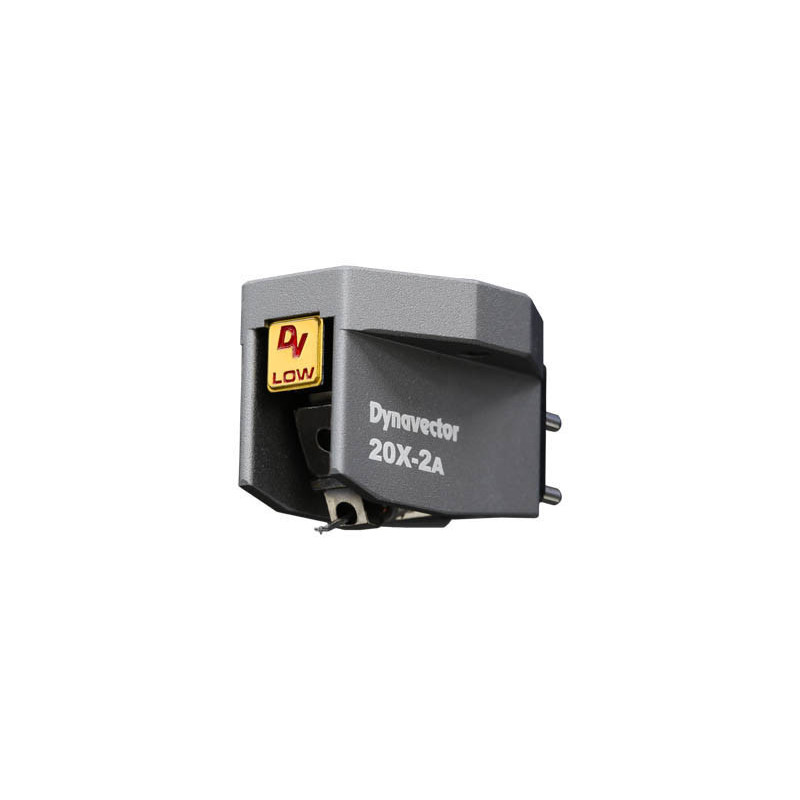

DYNAVECTOR DV 20X2A-H/L MC Cartridge

Using the same base structure as our higher-end models XX-2A and Te Kaitora Rua, it has a solid aluminium alloy body, hard aluminium cantilever and a Micro-Ridge stylus tip. Utilizes the special annealing magnetic treatment also.

This DV 20X2A phono cartridge has 2 types for you to choose from according to your system.
The 20X2A-L (low output model) has the output as a regular MC cartridge while the 20X2A-H (high output model) is an MC cartridge that suitable for the most MM input.

This cartridge is ideal for not only those who want to fully enjoy the sound from an MC cartridge, but also those who would like to easily experience the charms of an MC cartridge without the need to use an MC step up transformer.

Type

High/Low output moving coil cartridge
with flux damper and softened magnetism

Output Voltage

2.8 mV / 0.3 mV (at 1KHz, 5cm/sec.)

Channel Separation

25 dB (at 1KHz)

Channel balance

1.0 dB (at 1KHz)

Frequency response

20 - 20,000 Hz（±2dB）

Compliance

12 mm/N

Tracking force

1.8 - 2.2 g

Impedance

150 ohms / 5 ohms

Recommended load impedance

1,000 ohms / > 30 ohms

Cantilever

6mm length hard aluminium pipe

Stylus tip

Micro Ridge Nude diamond

Weight

9.2 g
