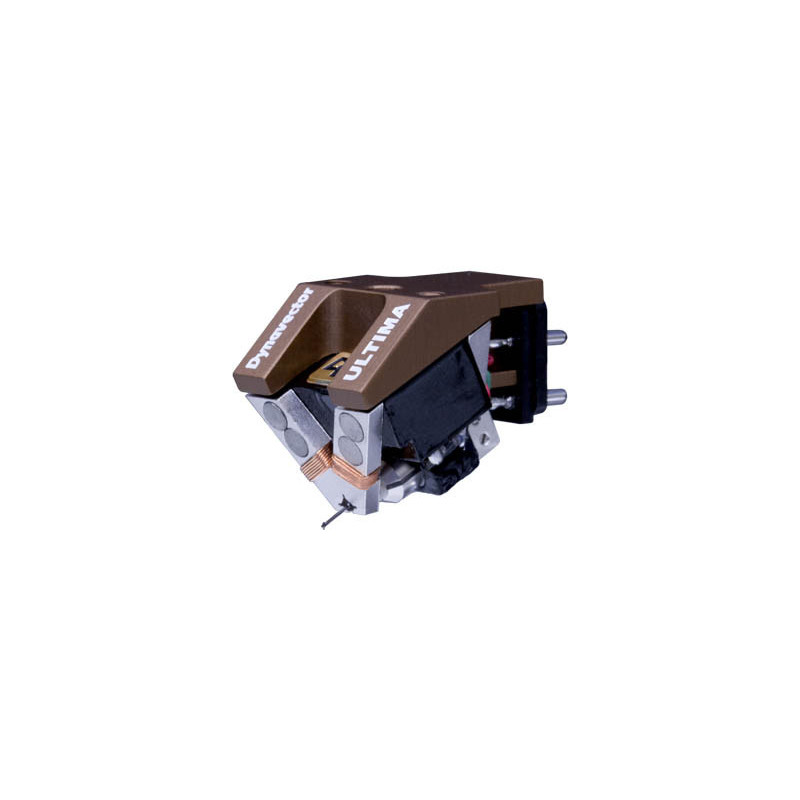

DYNAVECTOR XV Ultima MC Cartridge

Built on the same Special Annealing foundation as the Prima, but asking, "How far can this go?"

Research-grade ultra-high-purity iron responds to magnetic flux with minimum distortion. Ultra-fine coil on a precision cross-cut armature brings moving mass to its absolute minimum.

Quieter between the notes. More present within them. No compromise on material, no concession to cost. The XV Ultima is for the listener who has heard everything and is still looking.

Type

low output moving coil cartridge
with multi Alnico magnets and the Flux damper

Output Voltage

0.32 mV (at 1KHz, 5cm/sec.)

Channel Separation

30 dB (at 1KHz)

Channel balance

1.0 dB (at 1KHz)

Frequency response

20 - 20,000 Hz（±1dB）

Compliance

10 mm/N

Tracking force

1.8 - 2.2 g

Impedance

24 ohms *

Recommended load impedance

> 75 ohms

Cantilever

6mm length solid boron

Stylus tip

PF Line contact shape,
stylus radius: 7 x 30 micron

Weight

12.0 g

*Note that the XV Ultima's internal impedance is higher than conventional cartridges. Please ensure you have the right settings for your phonostage to get the best outcome.
