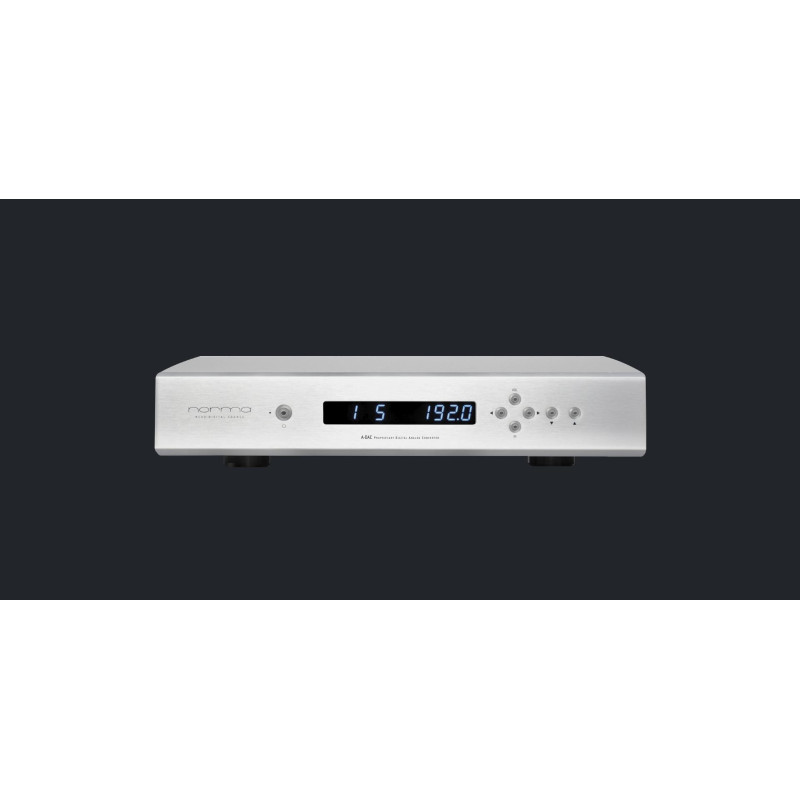

NORMA REVO DAC-2

A-DAC it is a “combination of digital and analog circuitry” and that it is a multi-bit circuit, not a sigma-delta.

It also uses proprietary 8 times filtering.

------------------------------------------------------------------------------------------------------------------------

– 5 digital inputs, USB, 2 x SPDIF RCA, SPDIF OPTICAL, AES-EBU.

– USB input and SPDIF full bandwidth, up to 24 Bit / 768 KHz.

– Possibility to customize for each digital input all parameters, including the value of oversampling.

– Possibility to use as the master A/D clock source the local oscillator or the clock form input signal.

– Two separate local clock oscillator for the two values . 22MHz / 24 MHz (44.1 / 48KHz).

– Local Oscillator high stability, low Jitter and low phase noise.

– Possibility to configure one of the 2 RCA inputs as digital output.

– NORMA Proprietary DAC, A-DAC model 1.

– Proprietary I-V architecture conversion.

– Analogue output stage based with full discrete devices amplifier.

– Extreme low noise, high resolution and high speed.

– Wide band ( >2 MHz ) schematic topology.

– RCA and Balanced output connection.

– Separate power supply for Digital and Analogue Output stage.

– High filtering capacity with numerous low impedance capacitors.

– 13 Powers supply regulators.

– Full aluminium non-magnetic frame.

– Toroidal transformer specially designed for audio applications.
