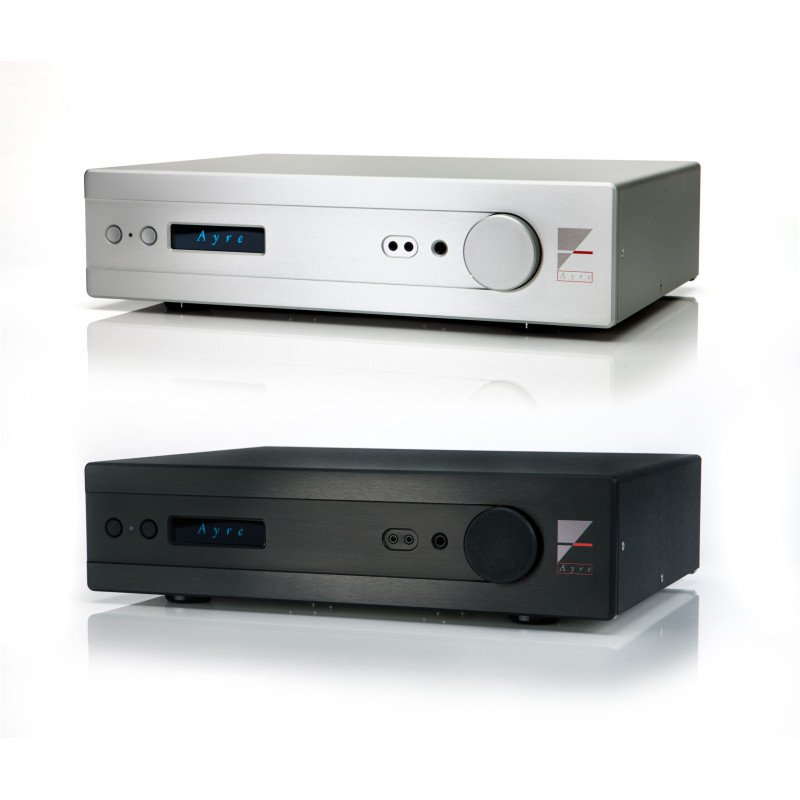

Ayre KX-8

First appearing in our world famous KX-R preamplifier, the KX-8 features the same recipe for true variable gain volume control; although in a much simpler and cost effective approach. Maintain a constant signal to noise ratio and set the music free, at any volume level. Built around Ayre’s exclusive innovations, the Ayre KX-8 includes fully-balanced, true zero-feedback circuitry throughout for natural musicality, unprecedented dynamics and detail.

Maximum Input Level
4 V rms – unbalanced inputs
8 V rms – balanced inputs

Output Level
4 V RMS – Balanced Outputs
2 V RMS – Single Ended Outputs

Gain
Gain Variable to match the required output level of the system without the need for attenuation.

Input Impedance
1 MΩ unbalanced inputs
2 MΩ balanced inputs (1 MΩ per phase)

Power Consumption
40 watts in operating mode
60 watts in operating mode (volume control active)

Dimensions

(44cm x 33cm x 11.5cm)

Weight

5.7 kg
