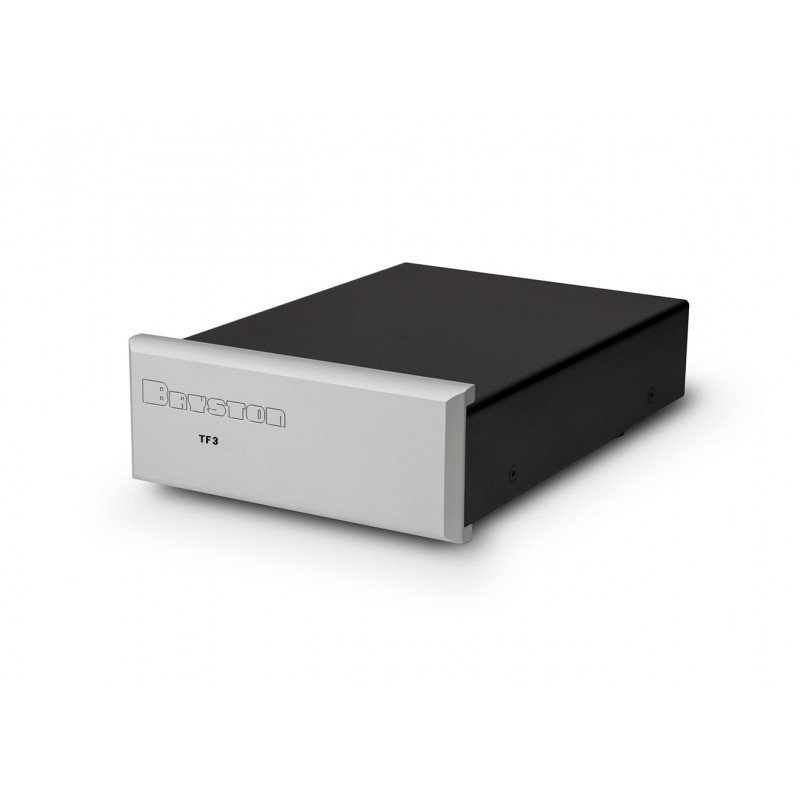

TF-3 Phono Step Up Transformer

Low output moving coil cartridges are well loved for their detail and nuance, but need more gain than what most active preamps can provide. Too much active gain for these low-output carts introduces noise and distortion, so let your first gain stage be the TF-3 passive step-up transformer. The TF-2 adds 20 or 26dB of gain (internal preset), with high quality wide bandwidth transformers and no active parts. Use the TF-3 with a Bryston BP-2 MM active gain stage or with your existing phono preamp.

Inputs: 2x RCA, 1x Turntable Ground
Outputs: 2x RCA

• Available with a silver or black faceplate
• Available in 20dB or 26dB gain configuration

• Frequency Response: 0.5dB @ 20Hz, 0.1dB @ 20kHz, 40dBu 20Hz - 20kHz
• Gain: 20dB (x10) or 26dB (x20)
• Sensitivity: 0.5 mV or 0.25 mV
• THD(@1kHz, -60dBu): <0.001%
• Output Impedance: 4.71kΩ
• Dimensions: 57mm H x 145mm W x 210mm D
• Weight 1.7kg
