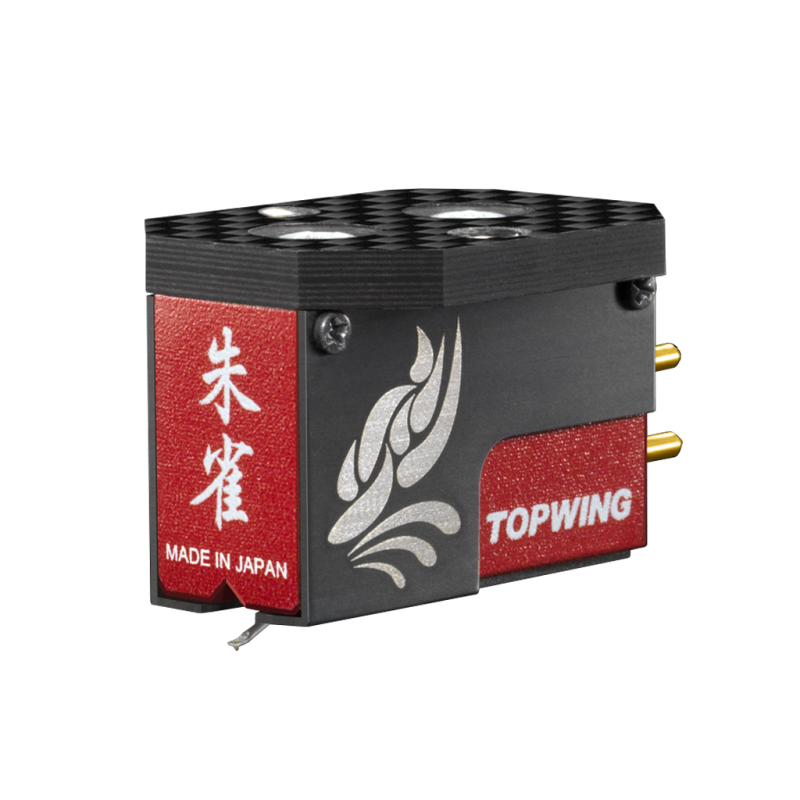

Top Wing Suzaku - Red Sparrow

As its name suggests, the coreless straight-flux system has no core material, with the left and right coils arranged in a V shape directly above the magnet. With that, the stylus tip picks up fluctuations in magnetic flux produced by the fine sound grooves, reproducing them into sound directly and thus accurately. This system does not generate any of the issues associated with MC cartridges, with which the coil output line moves irregularly within the magnetic flux and leads to sound disturbance, or with MM cartridges, with which responsiveness deteriorates due to a long magnetic path length.

Moreover, this system shares the high level of maintainability of MM cartridges. The stylus (needle, cantilever, assembled magnets), coil, damper, and more, are all constructed of interchangeable designs, which allows stylus replacement at 1/10th the original cartridge price.

The coreless straight-flux system is a singular technology that not only retains the advantages of existing MC and MM cartridges but also eliminates the drawbacks.

*Stylus replacement is handled by our professional staff after the main unit is sent to us.

*When a defect other than in the stylus unit occurs, a separate service-cost estimate is necessary.

The materials adopted in the cartridge include titanium, dry carbon, and high-performance resins classified as super engineering plastics, etc., to replace the Ultra Duralumin used in the Blue Dragon. We selected these high-performance materials, also utilized in advanced industries, based on our efforts to seek out cutting-edge technologies and innovative materials.

As a result, the weight of the Red Sparrow cartridge was reduced to slightly less than 9 grams, allowing maximization of performance regardless of the tone arm being used. By adopting a revolutionary method called the coreless straight-flux system as well as advanced technologies and innovative materials, Red Sparrow has achieved coexistence of a natural sound unique to analog and soundstage reproduction never before possible.

Specifications

Type of power generation: Coreless straight-flux

Stylus: Line contact

Cantilever material: Aluminum

Output at 5 cm/s: 0.2 mV

Internal impedance: 12.3Ω at 1 kHz

Inductance: Secret (but non sensitive to capacitive load)

Recommended tracking weight: 1.75 g–2.0 g

Weight: < 9 g
