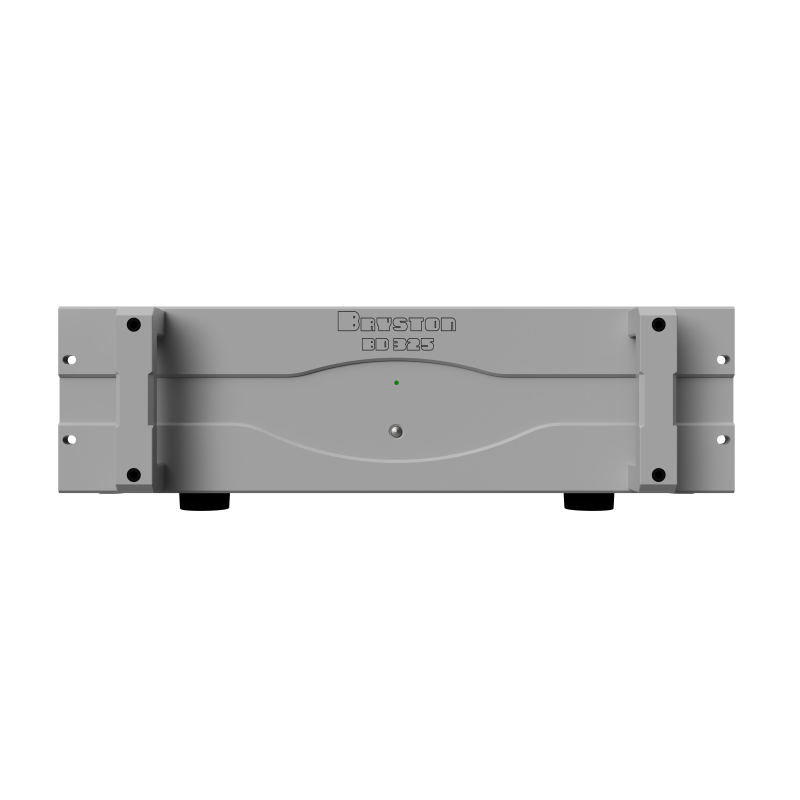

BD-325 Class D amplifier

The combination of proprietary Class D Bryston modules and a huge toroidal transformer along with 144000 microfarads of storage capacitance produces usable power many times the continuous rated power and that results in dynamic and distortion free listening.

Building on the strengths of linear PSU and switching amplification technologies the BD-325 is a a very powerful high quality amplifier.

Flexibility

The Bryston Class D amplifiers have the factory option of 1, 2, 3, 4, 5, or 6 independent Class D modules in one chassis. This provides versatility for multiple speakers in a multi-channel surround system.

Specifications:

- Frequency Response (6 ohms-3dB): 1Hz – 50kHz

- AC Input Voltage: 115 or 230

- RCA Input (Single Ended): Yes

- Sensitivity: 2 volts

- Signal to Noise Ratio: 105dB (at full power)

- 12 Volt Trigger: Yes

- Voltage Gain: 29dB

- XLR Input (Balanced): Yes

- Capacitance: 144,000uf

- Continuous RMS Wattage per channel into 8 ohms: 325 watts

- Continuous RMS Wattage per channel into 4 ohms: 650 watts

- Continuous RMS Wattage available to all channels: 1500 watts

- Dynamic Wattage (100ms) available to all channels: 4500 watts

- Weight (kg): 26

- Dimensions H W D (mm): 133 x 450 x 425

- Colour Faceplates Available
