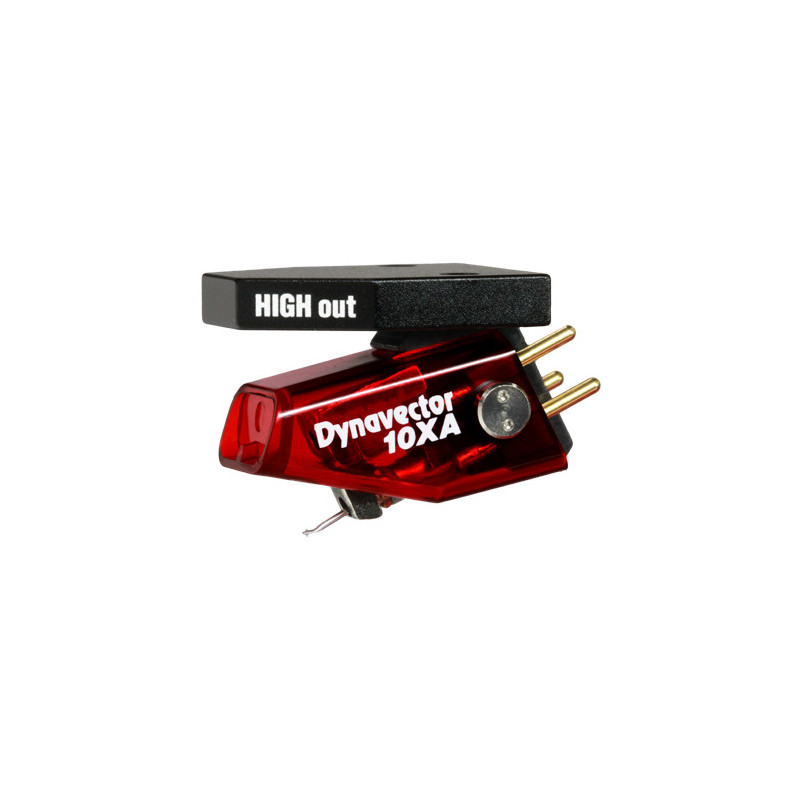

DYNAVECTOR DV-10XA-H/L MC Cartridge

The 10X series reaches new heights of performance with a newly developed magnetic circuit that incorporates Dynavector's proprietary "Special Magnetic Annealing" technology. The new 10XA model delivers exceptionally smooth and articulate analog playback, offering a listening experience that goes far beyond what is expected from an entry-level cartridge.

Type

High/Low output moving coil cartridge
with flux damper and softened magnetism

Output Voltage

2.8 mV / 0.5 mV (at 1KHz, 5cm/sec.)

Channel Separation

25 dB (at 1KHz)

Channel balance

1.0 dB (at 1KHz)

Frequency response

20 - 20,000 Hz（±2dB）

Compliance

12 mm/N

Tracking force

1.8 - 2.2 g

Impedance

150 ohms / 32 ohms

Recommended load impedance

> 1,000 ohms / > 100 ohms

Cantilever

6mm length hardened aluminium pipe

Stylus tip

Nude Diamond "Shibata III" Line Contact

Weight

7.5 g
