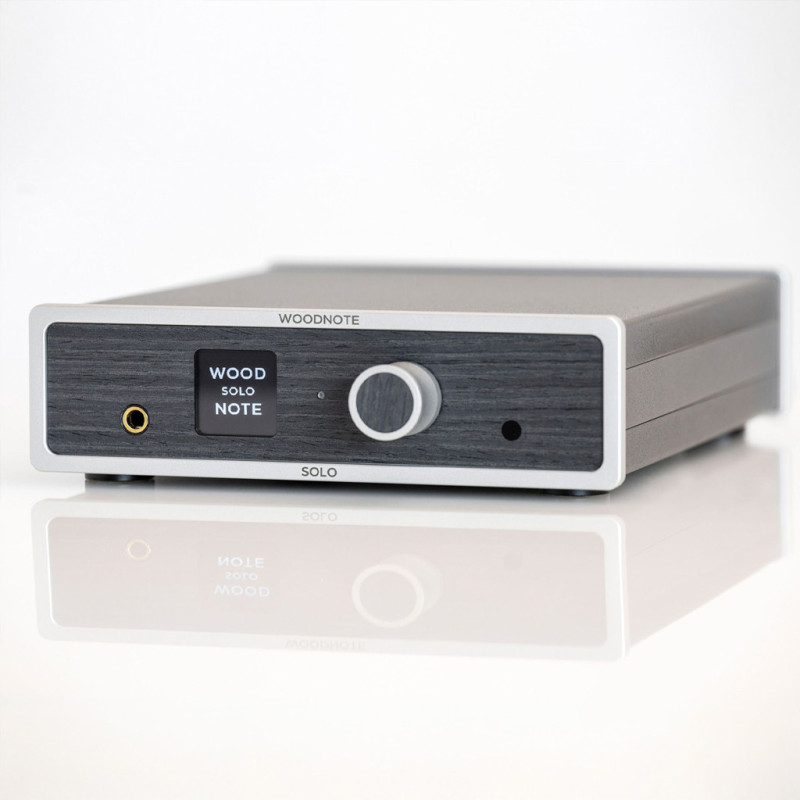

Lindemann Woodnote Solo Streamer

The Woodnote SOLO transforms digital data into pure emotion: With its innovative D/A converter design, DSD re-sampling, and an ultra-linear power supply featuring an R-core transformer, it sets new standards in audiophile sound reproduction.

The intuitive app control enables seamless streaming in studio quality. Thanks to the strict separation of digital and analog circuitry, the result is a sound image of remarkable clarity, naturalness, and depth – made for those who expect more from their music.

General

Power supply: 115 or 230V, 50 Hz
Power consumption: 0.5 W standby, 6 W operation, 10 W maximum
Dimensions: 207 x 250 x 62 mm (W x D x H)
Weight: 1.8 kg

Network Player

Ethernet: 100 Mbit/s
Wi-Fi: Dual-band 802.11a/b/g/n/ac, WPS support
Bluetooth: 4.2, A2DP, codecs SBC/AAC
USB: High-speed host interface for hard drives, USB sticks, CD-ROM drives, max output current 1A
Supported codecs: WAV, FLAC, AIFF, ALAC, MP3, AAC, Ogg Vorbis, WMA, native DSD
Network standards: UPnP and DLNA
PCM resolution: 44.1 kHz to 384 kHz, 24 bit
DSD resolution: DSD 64 to DSD 256

Gapless playback.
Streaming services: TIDAL (Connect), Qobuz (Connect), Deezer, HighResAudio, Spotify (Connect), internet radio and podcasts

D/A Converter

Resolution: 384 kHz / 24 bit and native DSD 256
Dynamic range: > 130 dB
THD & Noise: < 0.0002 % (@ 0 dB FS)
Master clock: Ultra-low jitter MEMS femto clock
Re-sampling: 180 dB dynamic range, 32-bit resolution, bit-perfect or DSD
Jitter suppression (re-sampling): > 60 dB
Volume range: 0 to 60 in 1 dB steps
Balance control: ±6 dB in 1 dB steps
Frequency response: 1 – 100 kHz (–3 dB)

Other

Inputs: Two digital inputs (RCA and TOS), LAN, USB, and HDMI eARC 2.1
Outputs: Two digital outputs (RCA and TOS), two analog outputs (XLR and RCA), usable simultaneously, optional volume control
Headphone output: 6.35 mm jack, recommended impedance 20–200 ohms, recommended sensitivity >100 dB/mW
