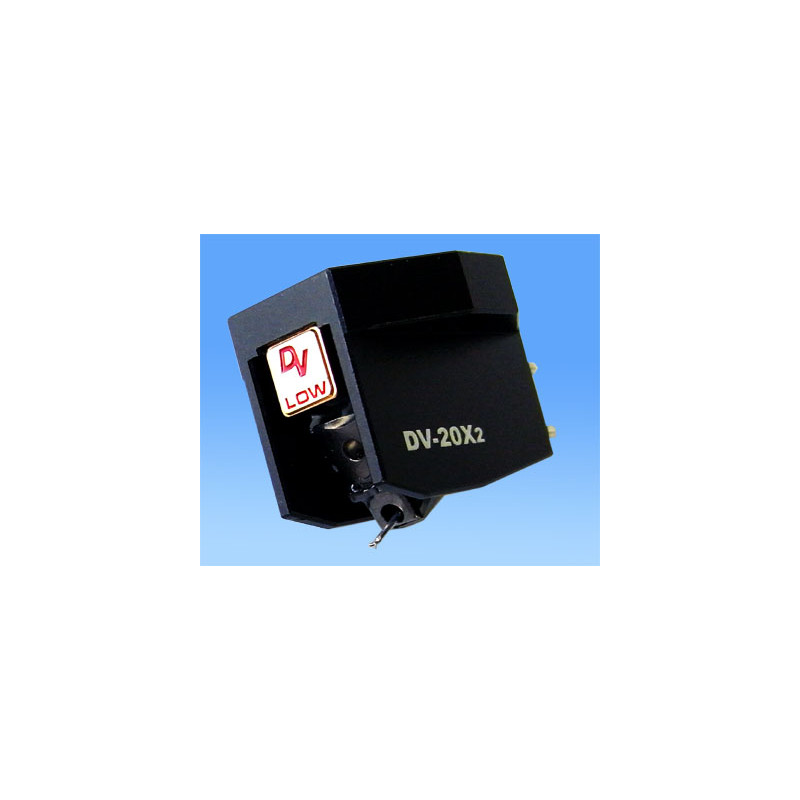

DYNAVECTOR DV-20X2 H/L MC Cartridge
Half open chassis MC cartridge. High or low output.
Secure Transaction
Fast Delivery
Return Policy
-
DV 20X2 phono cartridge has a solid aluminum alloy body and a rigid magnet construction similar to XX-2 MkII moving coil cartridge. The cantilever is a 6mm length of hard aluminum pipe with a Micro-Ridge stylus. The magnetic flux damping and softened magnetism along with powerful neodymium magnets gives the 20X2-H a healthy 2.8 mV output - suitable for most MM inputs. The 20X2-L has an output of 0.3 mV ideal for most MC phono stages.
Both high and low versions of their 20X2 phono cartridge are available ensure for the optimum end result. The high output model is well suited to valve preamplifiers or electronics that only offer MM inputs whilst the low output version offers superb performance when combined with dedicated moving coil inputs.
Specifications- Type
- High/Low output moving coil cartridge
with flux damper and softened magnetism - Output Voltage
- 2.8 mV / 0.3 mV (at 1KHz, 5cm/sec.)
- Channel Separation
- 25 dB (at 1KHz)
- Channel balance
- 1.0 dB (at 1KHz)
- Frequency response
- 20 - 20,000 Hz(±2dB)
- Compliance
- 12 mm/N
- Tracking force
- 1.8 - 2.2 g
- Impedance
- 150 ohms / 5 ohms
- Recommended load impedance
- 1,000 ohms / > 30 ohms
- Cantilever
- 6mm length hard aluminium pipe
- Stylus tip
- Micro Ridge Nude diamond
- Weight
- 9.2 g
