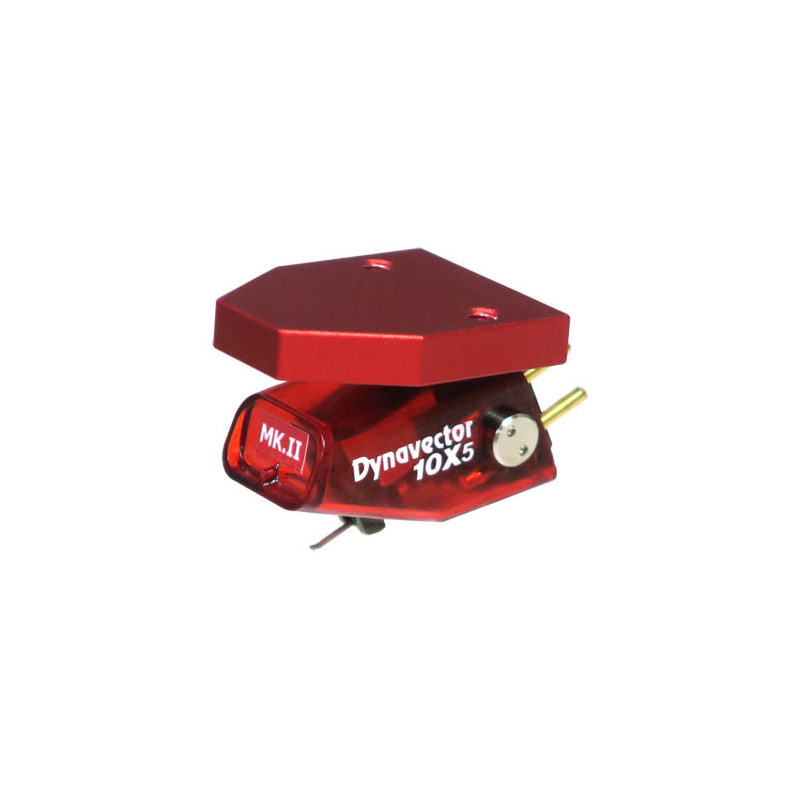

DYNAVECTOR DV-10X5 MKII MC Cartridge

First released in 1978 and recipient of the prestigious (at the time) Design and Engineering Award at the Chicago CES in both 1978 and 1981. The new Dynavector 10X5 MkII MC cartridge presents a new benchmark in High Output MC cartridge performance not requiring a step-up device or MC phono preamplifier.

Type

High or Low output moving coil cartridge
with flux damper and softened magnetism

Output Voltage

2.8mV / 0.5mV (at 1KHz, 5cm/sec.)

Channel Separation

25 dB (at 1KHz)

Channel balance

1.0 dB (at 1KHz)

Frequency response

20 - 20,000 Hz（±2dB）

Compliance

12 mm/N

Tracking force

1.8 - 2.2 g

Impedance

150/32 ohms

Recommended load impedance

> 100/1,000 ohms

Cantilever

6mm length hardened aluminium pipe

Stylus tip

Nude Diamond "Shibata III" Line Contact

Weight

7.5 g
