High power output tubes KT120
100W/ch(1KHz) at Pentode circuit (70W/ch at Triode). Pentode/Triode selector switch

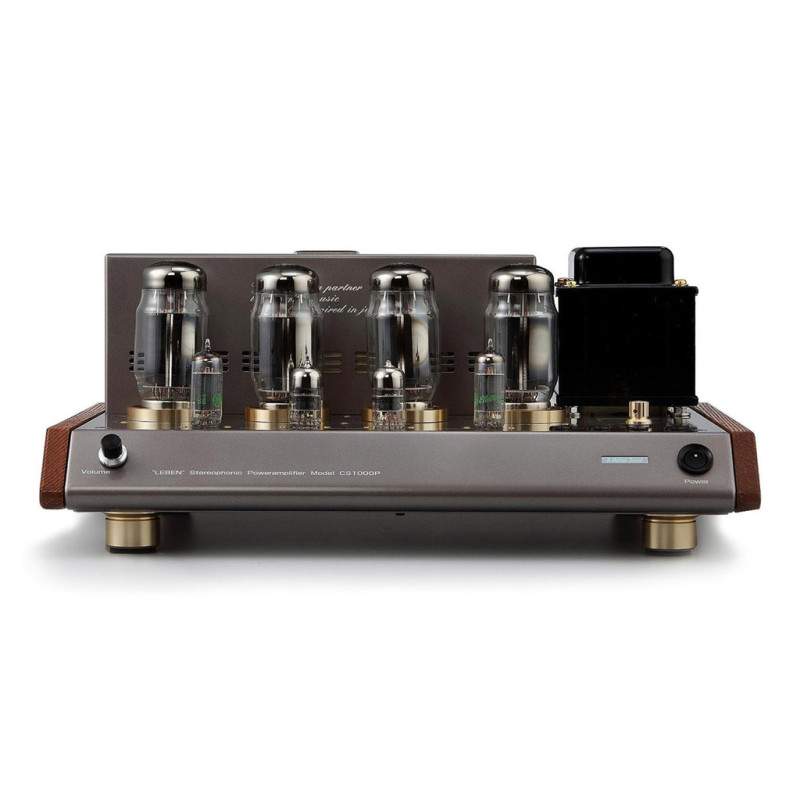

Leben CS-1000P power amplifier
€11,950.00
Tax included
High power output tubes KT120
100W/ch(1KHz) at Pentode circuit (70W/ch at Triode). Pentode/Triode selector switch
Secure Transaction
Fast Delivery
Return Policy
Premium quality stereo power amplifier.
Bias adjustment with a cathode direct current meter selectable for each tube.
Several types of output tubes are applicable by adjusting the cathode current.
Newly developed Orient-core output transformer for minimum loss and superior high-frequency. Flat and wide Frequency Response.
The wide frequency response from 10Hz to 120-150KHz (-3dB triode/pentode) caters for digital audio formats such as SACD/HDCD.
Alps input volume control with detents. High rigidity solid aluminum anti-vibration feet.
| TUBES COMPLIMENT | KT120 x 4 6922/6DJ8(ECC88) x 2 6CG7/6FQ7 x 2 |
|
|---|---|---|
| OUTPUT POWER | 100W x 2 at 1KHz. | |
| FREQUENCY RESPONSE | 10Hz - 150KHz. (-3dB) | |
| INPUT SENSITIVITY | 0.4V at 50W | |
| INPUT IMPEDANCE | 100K Ohms. | |
| OUTPUT IMPEDANCE | 4/6/8/16 Ohms (Selectable) | |
| POWER CONSUMPTION | ||
| WEIGHT | 23.5 Kgs. | |
| DIMENSIONS | 455 (W) X 200 (H) X 335 (D) mm | |
| ATTACHMENT | Detachable AC Power Cable x 1 | |
CS-1000P
Data sheet
- Inputs
- RCA
- Power
- 100 Watts
No customer reviews for the moment.
