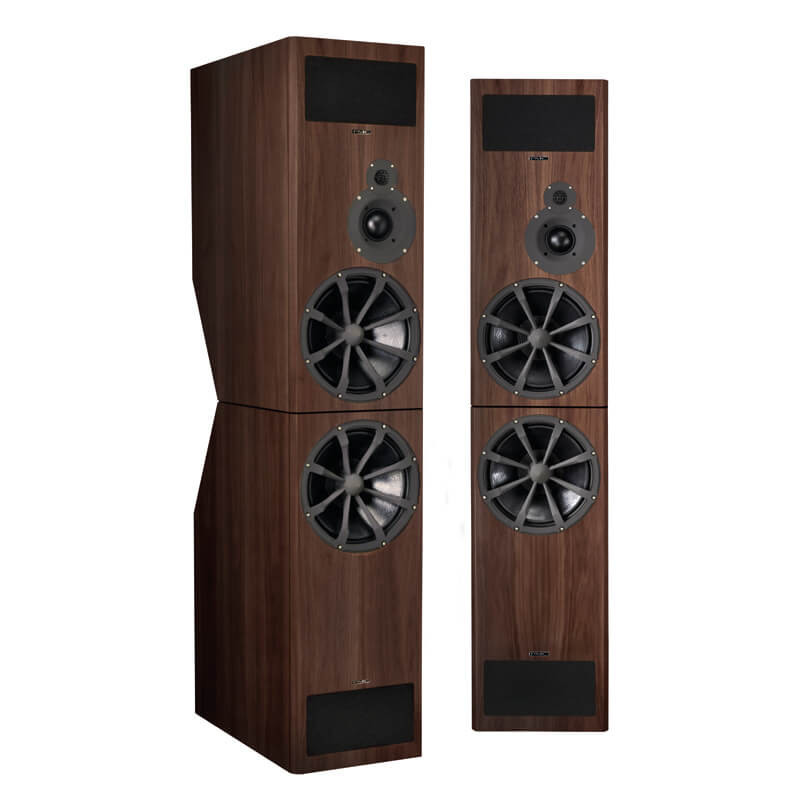

BB5 XBD-A SE

The twin-cabinet, BB5 XBD-Active, with its distinctive 15-inch Radial™ drivers, features a vast reservoir of separately housed power amplification - more than 2400W per channel - with 3dB of extra low-frequency headroom compared to the single-cabinet BB5, and a bass response that goes down to an awe-inspiring 17Hz, making for a wider frequency range than any other speaker we manufacture. The ultra-clean highs are provided by PMC’s 34mm high-frequency driver and the signature mid-range from the hand-crafted 75mm mid-range dome driver, so microscopic details are well and truly catered for.

Frequency Response:

17Hz-25kHz

Effective ATL™ Length:

2 x 4m (13ft)

Drive Units:

LF 2 x PMC 15” (380mm) Radial™ driver

MF PMC75 3” (75mm) fabric dome

HFPMC34 1.3” (34mm) soft dome

Crossover Frequency:

380Hz - 3.8kHz

Input Connectors:

Neutrik NL8, NL4

Balanced Analogue XLR

Amplifier Power per Channel:

LF 2 x 900W

MF 300W

HF 300W

Dimensions:

H 2080mm (81.9”)

W 432mm (17”)

D 790mm (31”)

Weight:

136kg (299.2lbs)

Available Finishes:
